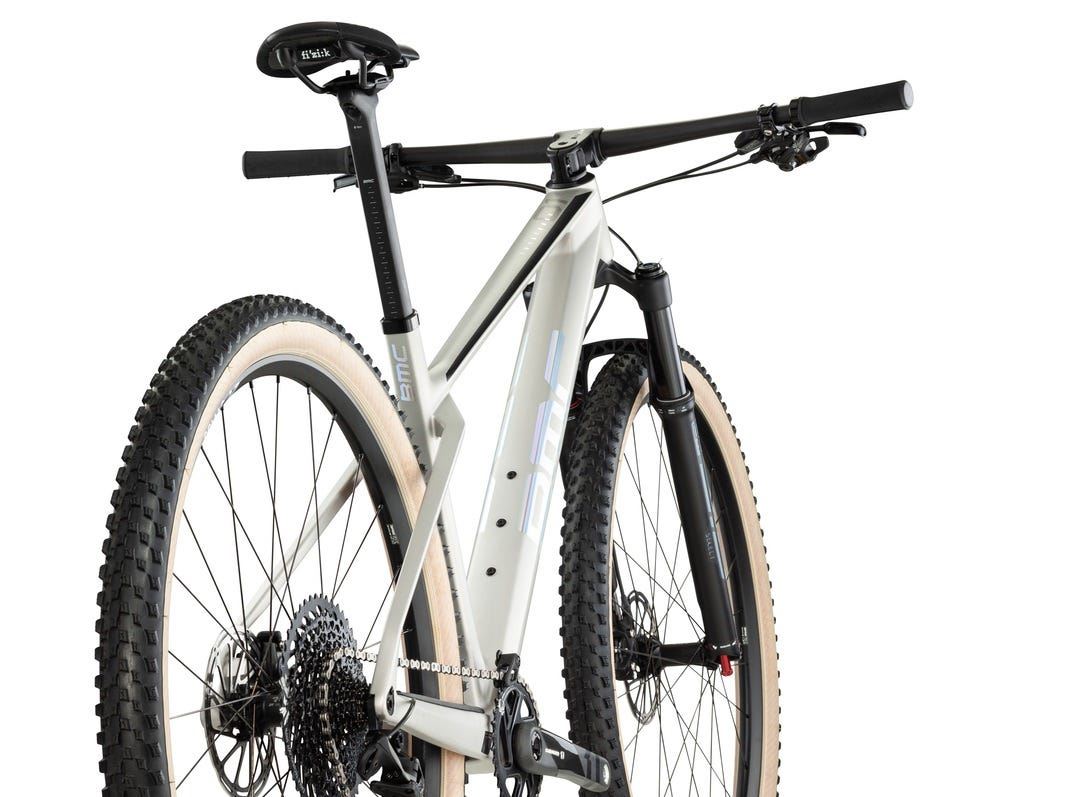

2022 BMC TwoStroke AL TWO Hardtail MTB | Turquiose-Black-White

RADICAL GEOMETRY

A 67˚ head angle, long front-end and 75° seat angle to attack steep and loose terrain with the perfect weight distribution.

INTERNAL CABLE ROUTING

Fully guided internal cable routing for easy installation and a clean look.

INTEGRATED PROTECTION

Molded covers on the chainstay, an integrated chain suck plate and helicopter tape on the downtube ensure durability and a sleek design.

WIDE TIRE CLEARANCE

Fully compatible with the new generation of wide XC tires.





• GROUPSET
  • Shimano Deore

• FRAME

  • Twostroke 01 Premium Aluminium, Hydroformed, Smoothwelded

    • Internal Cable Routing
    • BSA Threaded Bottom Bracket
    • Post Mount Disc

• FORK

  • Rock Shoy Judy TK Remote, 100mm

• GEARS

  • 1x12

• CHAINWHEEL

  • Shimano FC-MT510-1 32T

• CASSETTE

  • Shimano Deore 12 spd 10-51T

• CHAIN

  • Shimano Deore 12 spd

• REAR DERAILLEUR

  • Shimano Deore Shadow Plus 12 spd

• SHIFTERS

  • Shimano Deore 12 spd

• BRAKES

  • Shimano BR-MT200 / Shimano SM-RT30 Rotors (160/160 S-M, 180/160 L-XL)

• HANDLEBAR

  • BMC MFB03 750mm

• STEM

  • Forged 6061 Alloy

• SEATPOST

  • BMC MSP03 - 31,6mm - 0mm offset

• SADDLE

  • Velo VL-1831

• HUBS

  • Shimano HB-MT400-B/FH-MT410-B

• RIMS

  • XCD23

• TIRES

  • Vittoria Barzo 2.25

• TIRE CLEARANCE

  • 58mm (measured width)

• WEIGHT (KG)

  • 13.2

• WEIGHT LIMIT

  • 110 kg / 242 lb

• ASTM CLASSIFICATION

  • Level 3

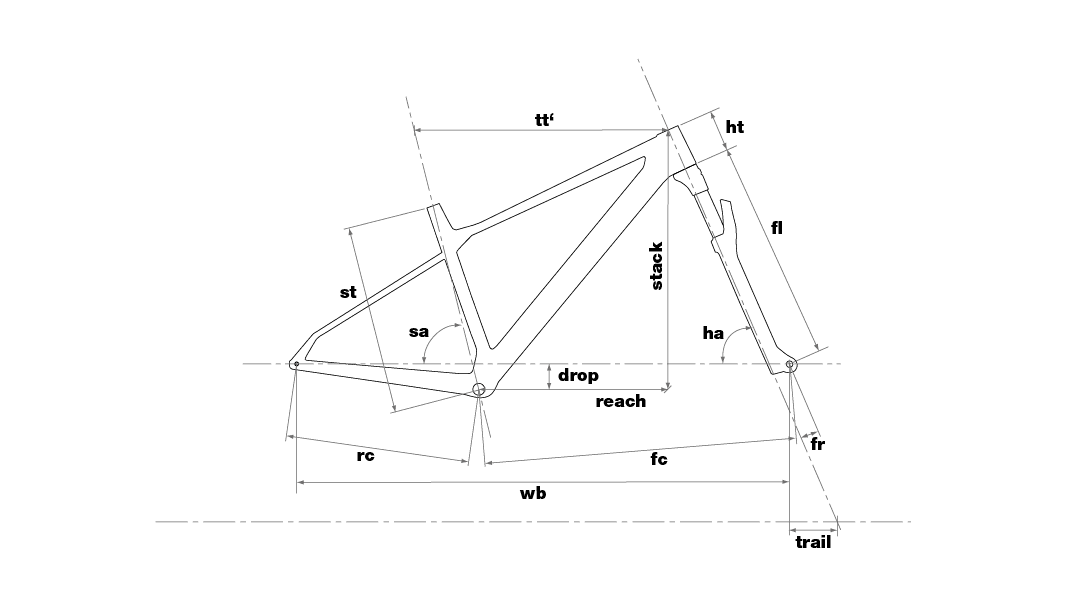

GEOMETRY

















SIZE	S	M	L	XL
Rider Height CM	<170	170-182	180-192	>190
Top Tube MM (tt)	597	618	638	658
Wheelbase MM (wb)	1112.5	1135	1161	1185
Seat Angle (sa)	75	75	75	75
Seatpost Length MM	350	400	400	400
Stack MM	588	598	608	623
Trail MM (trail)	109	109	109	109
Rear Center MM (rc)	425	425	425	425
Reach MM (reach)	422.5	445	465	485
Head Tube MM (ht)	87	93.5	106	122.5
Head Angle (ha)	67	67	67	67
BB Drop MM (drop)	64	64	64	64
Stem Length MM	60	60	60	70
Seat Tube MM (st)	410	440	480	510
Stem Angle	±5	±5	±5	±5
Crank Length MM	170	175	175	175
Fork Rake MM (fr)	44	44	44	44
Front Center MM (fc)	696	715	741	767
Fork Length MM (fl)	505	505	505	505
Bar Rise MM	4	4	4	4
Bar Width MM	750	750	750	750
Backsweep	9	9	9	9
