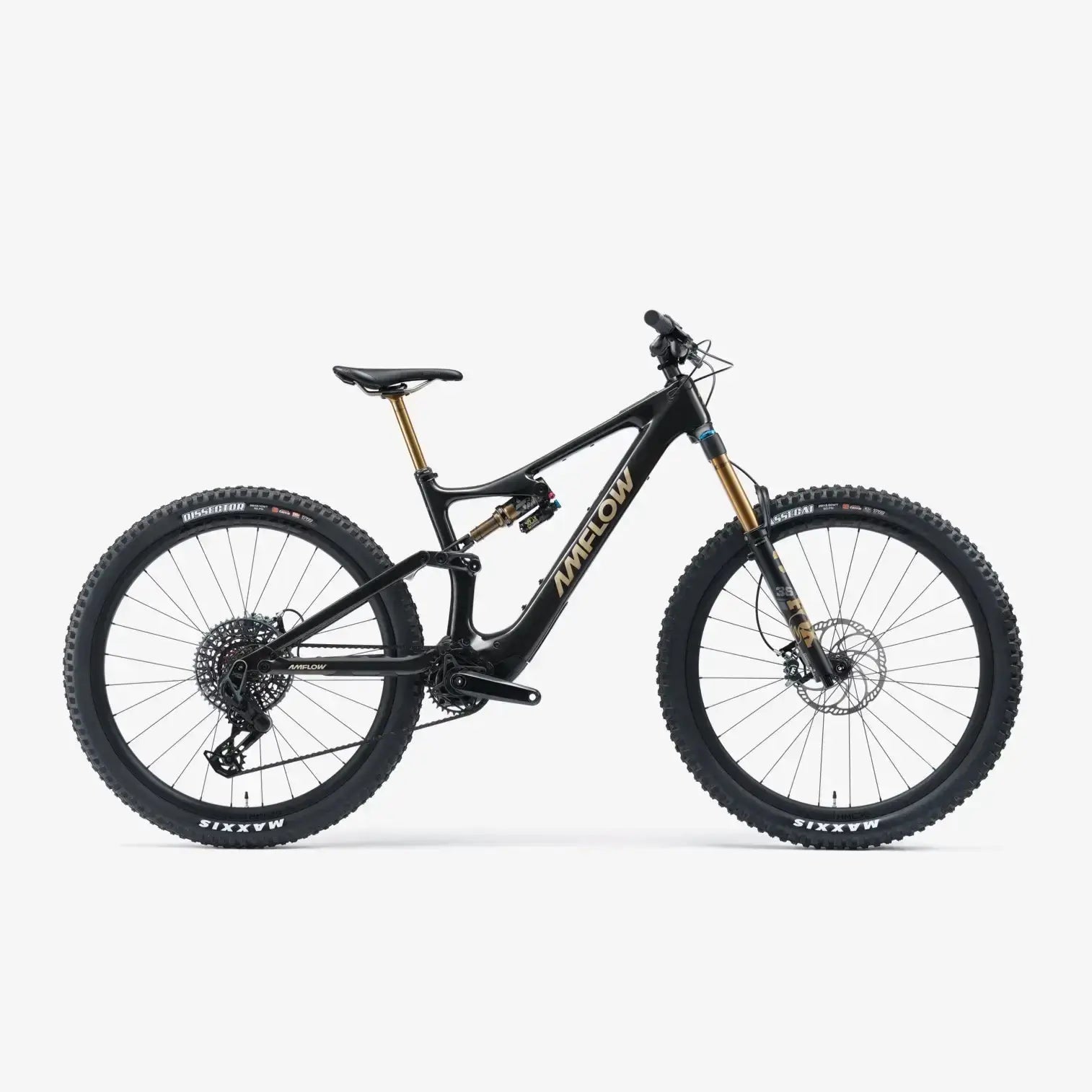

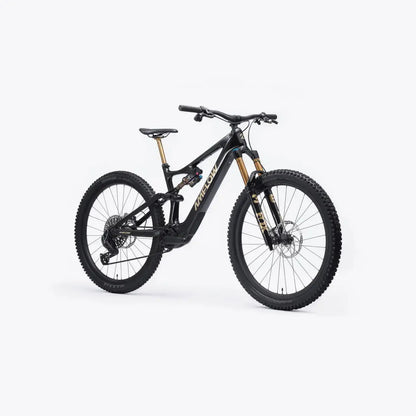

2026 Amflow PL Carbon Pro E-MTB

The Amflow PL series offers an unrivaled combination of power, range, and weight. Packed with innovative and seamlessly integrated technology, these electric mountain bikes are built to deliver the ultimate ride.



































Powerful 105N·m Torque | Complete Bike Weight ~20.2kg (PL Carbon Pro 800Wh) | 800Wh High-Capacity Battery | Smartphone Connectivity



Frame

Amflow PL Carbon Frame

Cosmic Black

150mm rear travel

Compatible with 27.5" and 29" rear wheels



E-Bike System

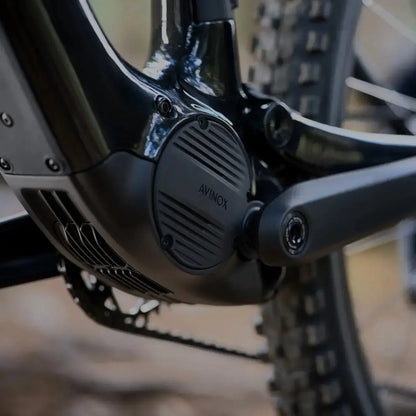

Avinox M1 Drive Unit: 105 N·m

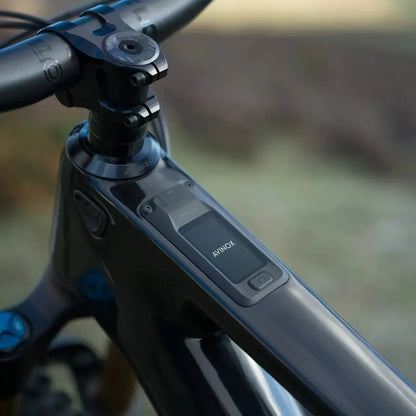

Avinox Screen: 2-inch OLED Control Display

Avinox Integrated Battery: 600Wh/800Wh

Avinox Wireless Controllers: Right and left sides

Avinox Fast Charger: 12A/508W

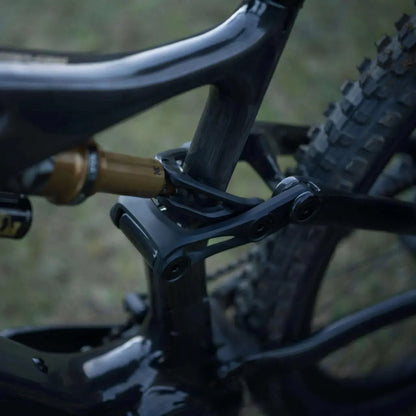

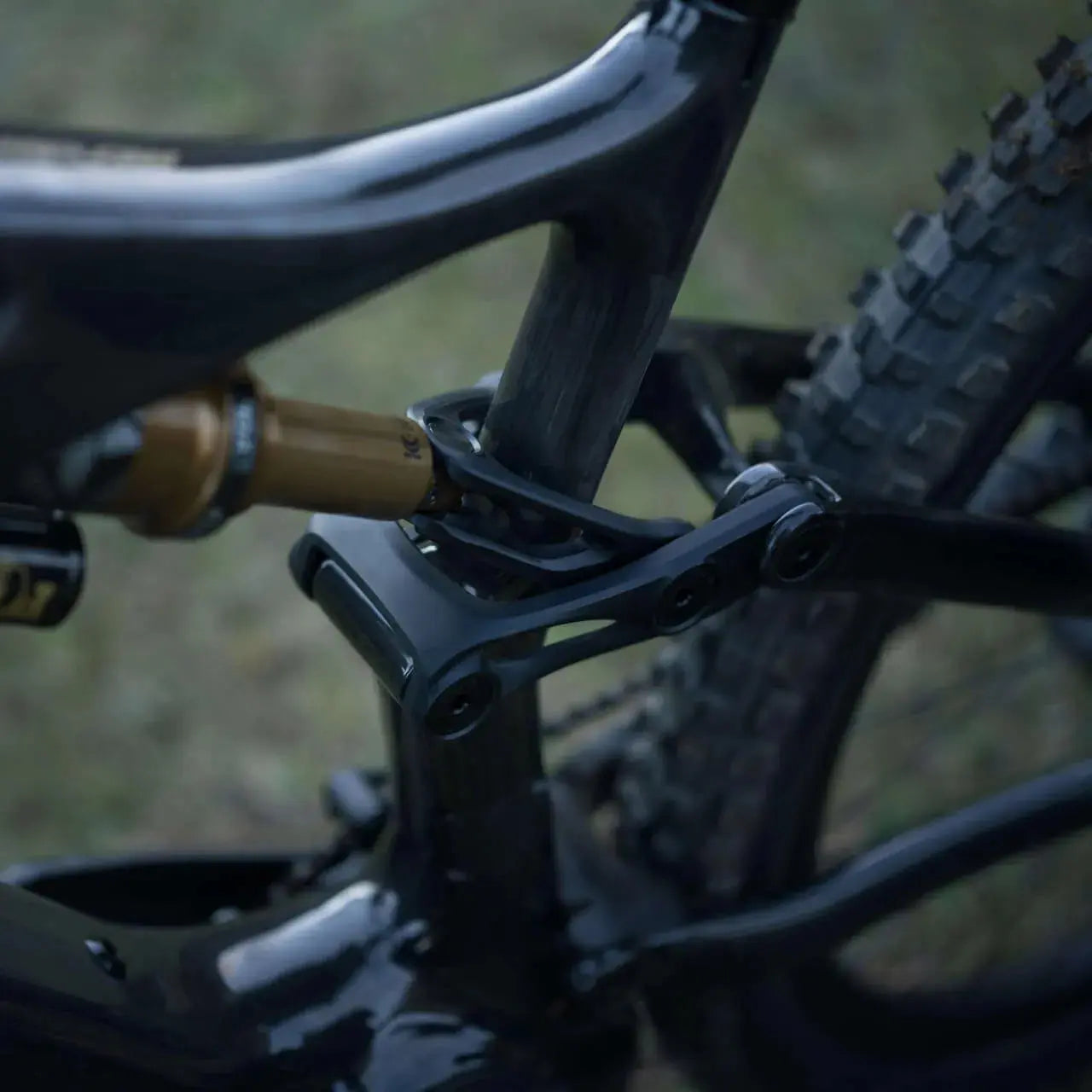

Rear shock

2026 FOX FLOAT X Factory

Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment



Fork

2026 FOX 36 Factory

160mm travel, GRIP X2 Damper, 15×110mm, 44mm rake



Transmission

Rear Derailleur: SRAM X0 Eagle Transmission Derailleur w/ power cable

Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T

Shift Levers: SRAM AXS Pod Controller

Cassette: SRAM XS-1295 Eagle Transmission 10-52T

Chain: SRAM X0 Eagle Transmission Flattop Chain

Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)



Brakes

Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC Rotor (front and rear)



Wheels

Amflow HMC-30

Rims: Carbon, 29'', 30mm internal width, 28H, tubeless ready

Spokes: SAPIM E-Light Straightpull

Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 28h, straight-pull, 6-bolt

Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 28h, straight-pull, 6-bolt, 78T



Tires

Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR

Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR



Handlebar

Amflow Enduro Carbon Handlebar

25mm rise, 800mm wide

5-degree upsweep, 9-degree backsweep



Grips

Amflow Enduro Grips



Stem

Amflow Enduro Stem, One-piece CNC

Length: 35mm

Clamping diameter: 35mm



Saddle

Ergon SM PRO M/L



Seatpost

Fox Transfer Factory, Travel adjustable in 5mm

M: 125-150mm

L/XL: 155-180mm

XXL: 180-210mm
