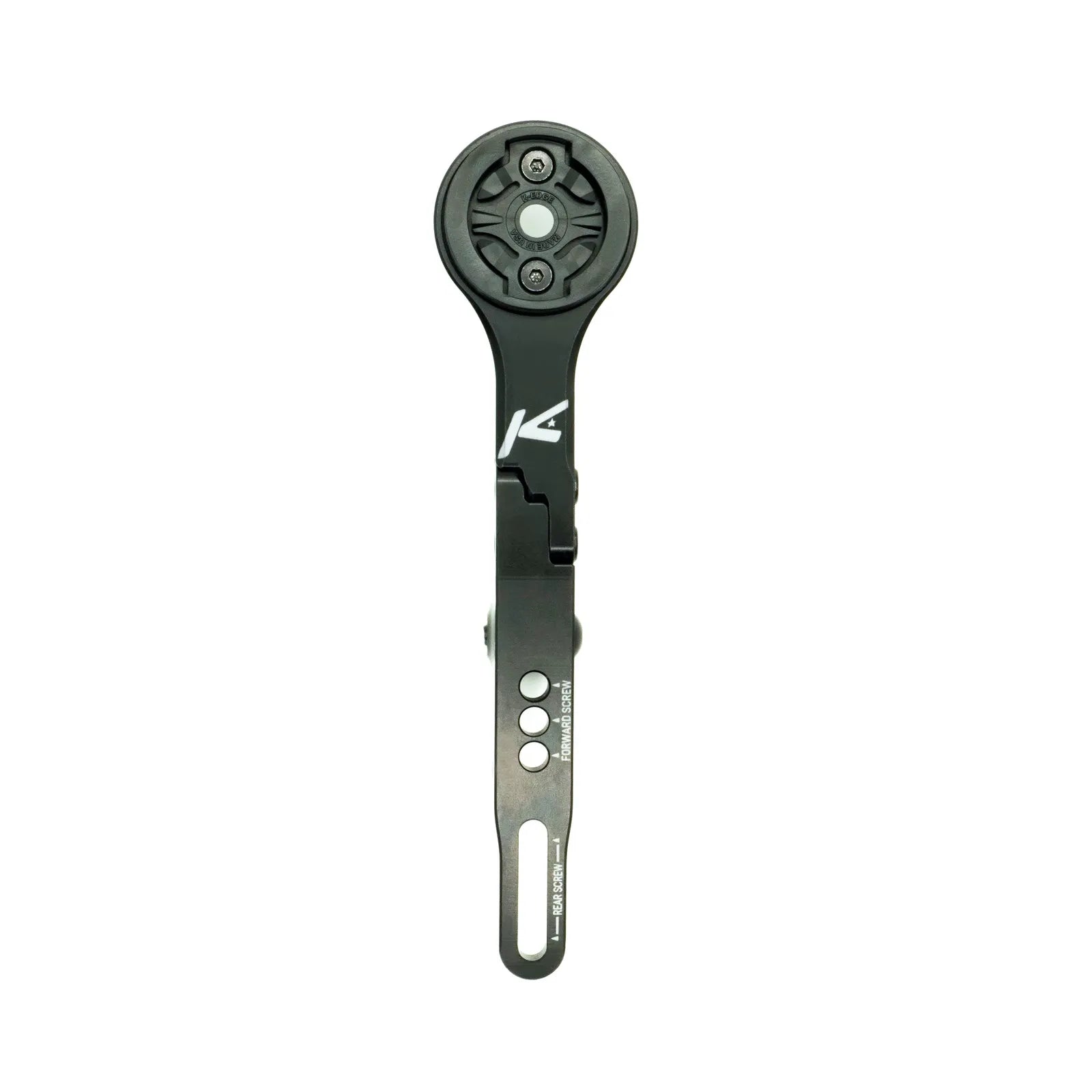

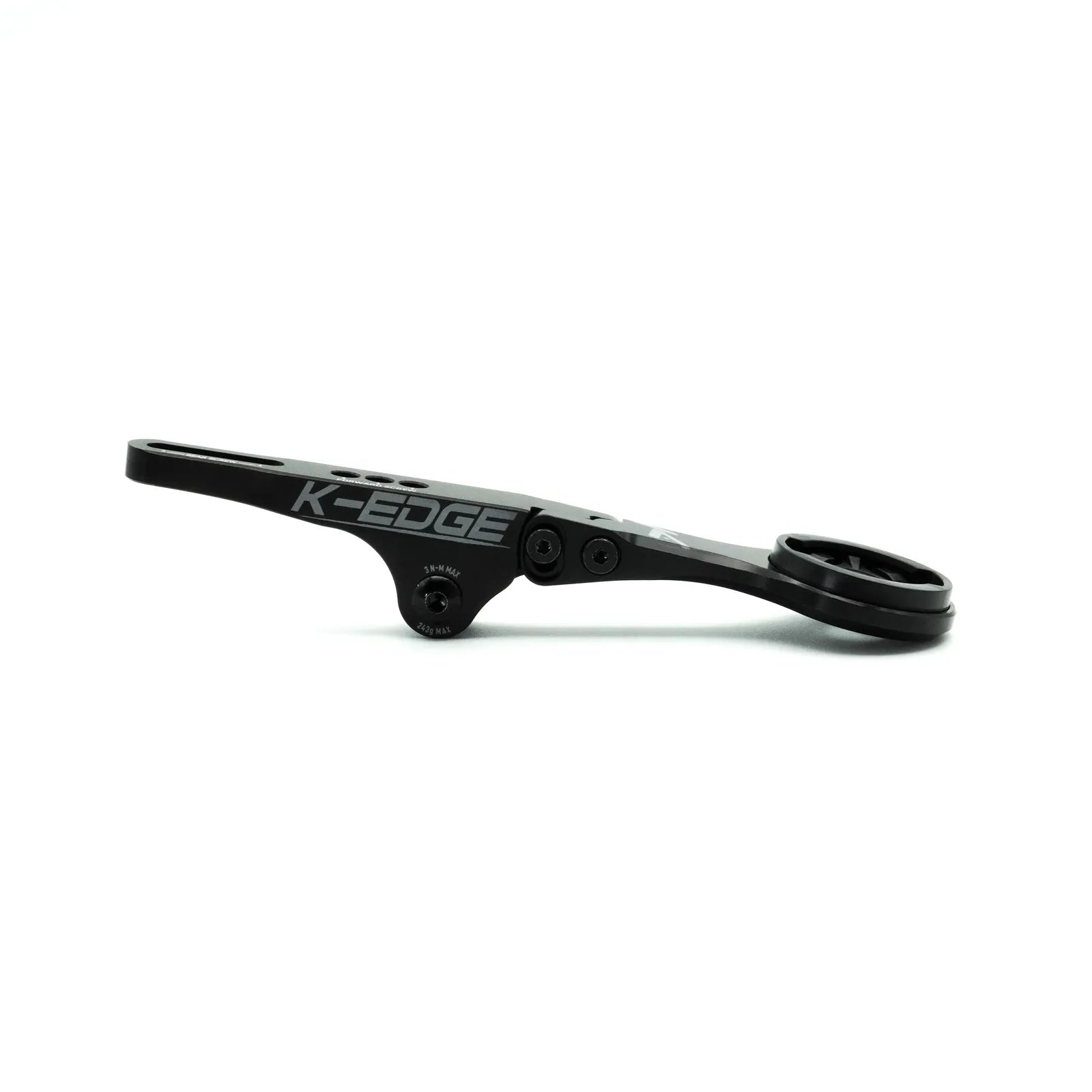

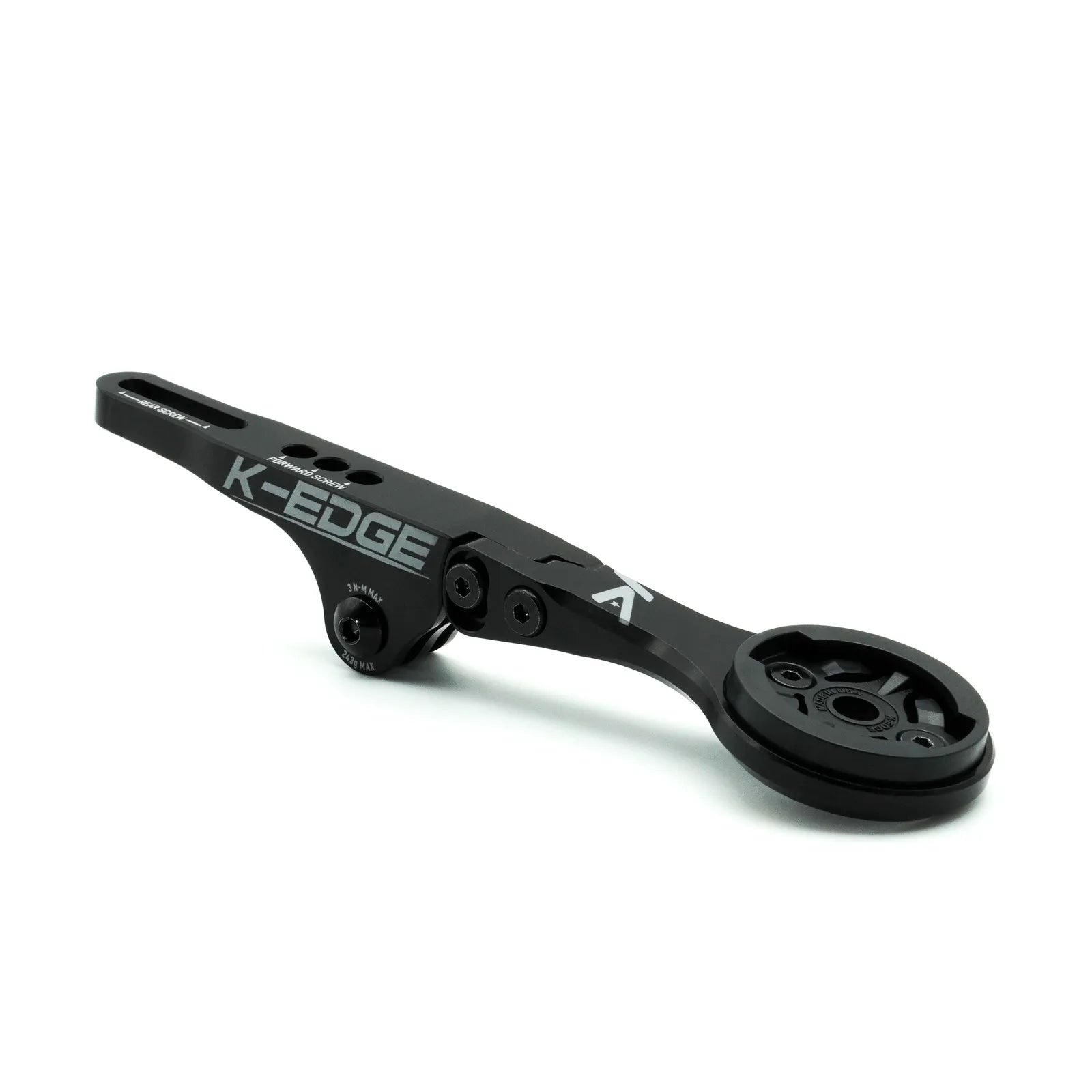

K-EDGE Garmin Integrated Handlebar System XXL Mount Combo - Black

Built for modern, one-piece bar/stem cockpits, the K-EDGE IHS XXL positions your computer centred and out-front with extra clearance for larger head units. The -70 tilt lets you fine-tune screen angle, while the CNC-machined body delivers the rock-solid feel K-EDGE is known for. Choose the Combo version to mount a light or camera underneath.

Highlights

• XXL reach & stiffness for todays larger computers; centred, aero placement.

• -70 articulation for custom viewing angle.

• Combo option supports an under-bar accessory (light/camera) up to 243 g.

• CNC-machined, black-anodised mount with lifetime warranty; Made in Boise, Idaho (USA).

Compatibility & fit notes

• For integrated (one-piece) bar/stem with in-line two-bolt pattern; M5 hardware included (use an 8.4 mm washer if your bar needs smaller bolts).

• Bolt placement is critical: install one bolt in the rear slot and one in a round holenever both in the rear slot.

• Head units: All Garmin (including Edge 1050); most Wahoo (not Wahoo Ace).

• Popular cockpit notes: works with most Canyon IHS setups (fit kit often required); not compatible with certain systems (e.g., Cervelo V-Stem, Ventum, Colnago R41, Vision Metron 5D, Black Inc, BMC ICS, Scott Syncros, and specific Canyon CP0039/CP0047/H11/H36).

• Do not use the separate Combo Adapter (K13-580-BLK) with IHS; it voids the lifetime warranty. (Use the IHS Combo version instead.)

Specifications

• Mount standard: IHS two-bolt (in-line)

• Adjustment: -70 tilt

• Accessory limit (Combo): 243 g max (light/camera)

• Finish: CNC-machined, black anodised

• Included: Mount, M5 hardware (Canyon fit kit sold separately)
