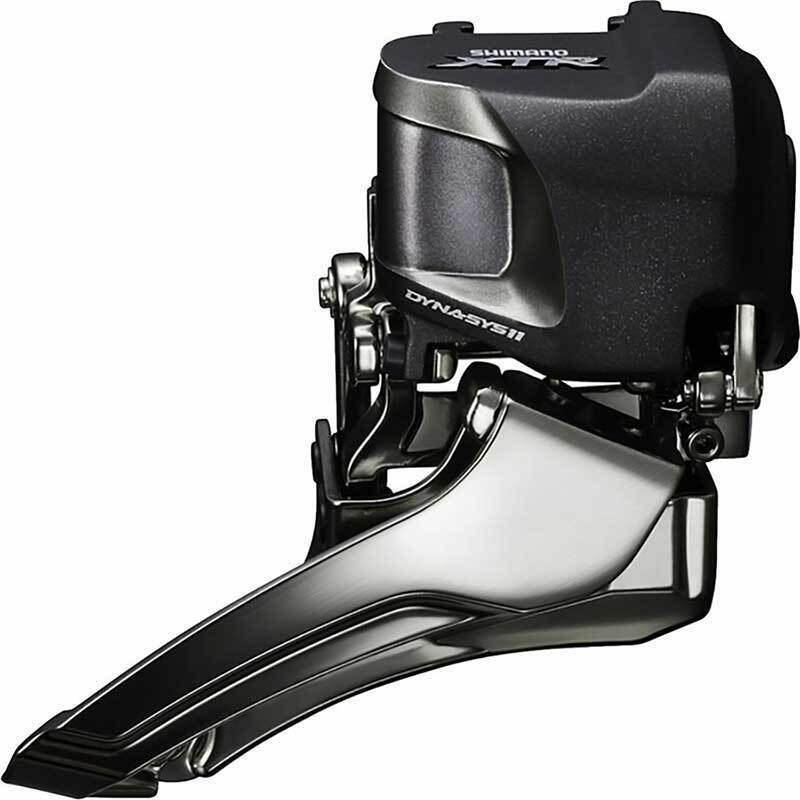

Shimano XTR Di2 M9070 2 x 11 Speed Front Derailleur

Shimano XTR Di2 Derailleurs FD-M9070

The XTR M9070 Di2 derailleur gearshifts rapidly and precisely by nudging the shift lever Di2 Firebolt. The electrical pulse is passed via E-Tube cable to the derailleur which durchfüht gearshifts using small servomotors. The digital control allows even under load, always consistent and accurate gear shifting in any situation, in addition, the Auto Trim function ensures the optimum position of the derailleur so that you can concentrate on driving longer.

The FD-M9070 derailleur Synchro Shift compatible, meaning: rear derailleur and derailleur are electronically tuned to each other and a single lever is enough to carry out any desired switching operations as efficiently as possible. The circuit can be tailored as desired.

The FD-M9070 is compatible Thanks to its modular adapter system with standard mounting standards and ensures accurate, sovereign shifts with 2-fold cranksets.

Features

• Fast and accurate gear shifting even under load
• Excellent and simple adjustability
• Reduced maintenance
• Designed in view of trail bike with long suspension
• Only 2-fold cranksets
• Modular mounting possibilities
• Synchro Shift compatible
• Data and power transmission by e-Tube Connection

Technical Specifications

• Format: downswing, mounting via adapter sold separately
• Connection: E-Tube Cable Connection
• Connection cable: EW-SD50 (external installation), EW-SD50-I (internal wiring)
• Compatibility Setting: seat tube diameter 28.6 / 31.8 / 34.9 mm or direct mounting optional selectable
• Compatibility Shifters: Shimano Di2 shifters Firebolt
• Compatibility Chain: Shimano HG-X11
• Chain line: 48.8 mm
• Recommendation chainring: 34-38 teeth
• Capacity: 2-fold with 10 teeth difference between the largest and smallest leaf
• Colour: Black - Silver
• Weight: 115g

What's Included?

Only derailleur mounting and connecting cable must be purchased separately!
